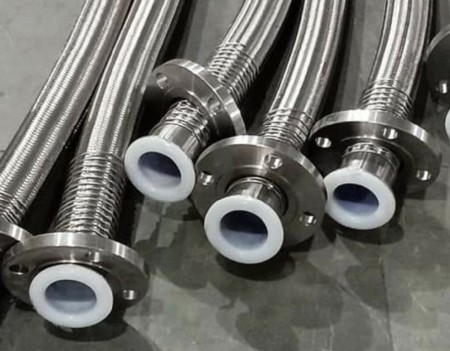

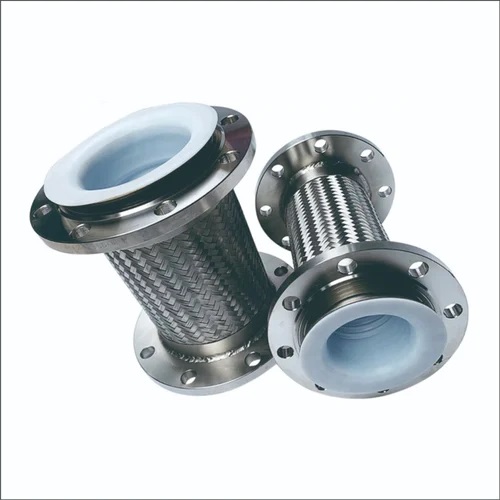

PTFE BRAIDED FLEX HOSE



PTFE Flex Hoses are a versatile and durable alternative to rubber hoses. PTFE (Polytetrafluoroethylene) or known as Teflon, is used as a liner for stainless steel braided hose to increase temperature range compatibility, chemical resistance, flexibility and shock resistance. The added outer braid increases the pressure handling.



Specific characteristics & high chemical/temperature tolerances make this a popular choice among engineers and facilities managers. PTFE Hoses are available in a smooth bore inner or convoluted liner making it better suited for easy bending. Choosing the correct PTFE hose aids in achieving the best possible hose assembly for your most critical fluid transfer applications.



KEY INDUSTRIES SERVED:



PHARMACEUTICAL

AUTOMOTIVE

POWER GENERATION

COSMETICS

CHEMICAL TRANSFER

FOOD & BEVERAGE





PTFE HOSE FOR FOOD & BEVERAGE INDUSTRIES



Dissolved oxygen (DO) is a major issue for the food and beverage industries due to the repetitive up-and-down action of food and beverage processing equipment. PTFE and PTFE-lined hose construction is ideal for food and beverage efficient product transfer and handling while simultaneously offering an exceptionally long service life. Its design retains a smooth circular bore without distortion, resulting in smooth, consistent flow with minimal turbulence.



SIZE: 1/4″ – 8″

LINING MATERIAL: PTFE (TEFLON)

TEMPERATURE RANGE: -70°C +260°C

PROFILE: SMOOTH BORE OR CONVOLUTED

OUTER: STAINLESS STEEL  SS304 OR SS316

END CONNECTIONS: SPECIAL FITTINGS OR FLANGES
